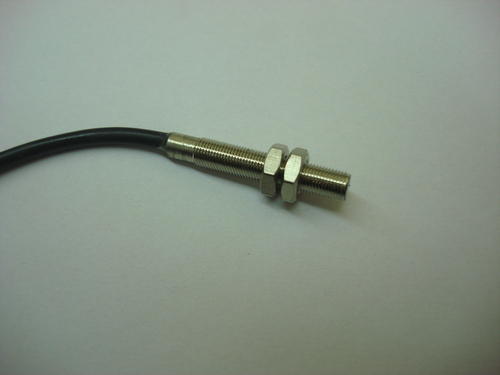

Inductive Proximity Switches (Barrel Round) DC Type

Inductive Proximity Switches (Barrel Round) DC Type are engineered using best available techniques and employing first grade components. These find their wide application where metallic target has to be sensed. These are fitted with exclusive sensors which are especially fitted to reduce inventory and wiring time for all DC applications. These are available in various technical specifications and range. These are acclaimed for uninterrupted performance and longer service life. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.

Proximity Sensors are common ,durable and reliable solution for application requiring accurate,non contact detection of metallic objects in machinery and automation eqipments.

Working Principal
An inductive alternating r.f. field is developed at the front of the sensing surface of the proximity switch. this field is generated by the resonant circuit coil of the oscillator.

Energy is absorbed when a metal piece is brought into the r.f. field near the sensing surface, causing oscillation to stop. hence the demodulated voltage feeding the trigger disappears.

For DC Switches
The trigger operates rapidly when oscillation stops and this trigger switches the output transister, which can be either npn or pnp to drive an electronic circuit or relay.

Main Features:-
  1. Sensors features Quality performance and a wide selection of models for various applications.
  2. Improves noise resistance with durable and reliable IC.
  3. Built in reverse polarity protection circuit.
  4. Built in surge protection circuit.
  5. Built in over current protection.
  6. IP-67 protection grade and CE Approved.
  7. Replaceable for micro and limit switches.
  8. Available in cable and connector type and variety of different shapes for flexibility in user installation.
  9. These switches can be used anywhere where extreme conditions exist, e.g.with lubricants and cutting oils under vibration , moisty and dusty environments, etc

Inductive Proximity Switches DC Type are available in sizes of diameter 4mm to 80 mm in NPN / PNP type with NO / NC / NO+NC output logic having Flush Type / Non Flush Type mounting.

Application:-
Inductive proximity switches or sensors are used to detect the position of metals (any type). some applications of inductive proximity switches are –machine tools, textile, sugar, cement, automobile industries, oil& gas, electronics,medical, defence and many more.

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-0.5-4-P1-30-F

Inductive proximity switches (barrel round) DC type M-4X30 are engineered under the firm direction of experienced quality controllers. These have switching frequency of 3000Hz and operating voltage 5-30VDC. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-0.5-4-P1-30-F
SIZE M-4X30
TYPE PNP
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-30 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE .5 mm for standard object size
VOLTAGE DROP AT FULL LOAD 1.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 3000 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-4X30
MOUNTING Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 7X7X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-0.75-5-N1-30-F

Inductive proximity switches (barrel round) DC type M-5x30 are available in various technical specifications. These have maximum load current of 300mAmp and these have LED position indication. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-0.75-5-N1-30-F
SIZE M-5x30
TYPE NPN
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-30 VDC
MAX. LOAD CURRENT 50-75 mAmp.
SENSING DISTANCE .75 mm for standard object size
VOLTAGE DROP AT FULL LOAD 1.5 VDC
NO LOAD CURRENT >10.0 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 3000 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-5X30
MOUNTING Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 7X7X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-1.0-6.5-N1-50-F

Inductive proximity switches (barrel round) DC type M-6.5x50FM are made under the firm direction of experienced quality controllers and following world class standard. These have ambient temperature 70°C and flush type mounting. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-1.0-6.5-N1-50-F
SIZE M-6.5x50
TYPE NPN
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-30 VDC
MAX. LOAD CURRENT 100 mAmp.
SENSING DISTANCE 1.0 mm for standard object size
VOLTAGE DROP AT FULL LOAD 1.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 3000 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-6.5X30
MOUNTING Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 8X8X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-1.5-8-N1-45-F

Inductive proximity switches (barrel round) DC type M-8x45 are made from high quality components and following international industrial standard. These have flush type mounting and nickel plated brass tube enclosure. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-1.5-8-N1-45-F
SIZE M-8x45
TYPE NPN
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-30 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE 1.5 mm for standard object size
VOLTAGE DROP AT FULL LOAD 2.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 2500 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-8x45
MOUNTING Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 10X10X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-4-12-N1-55-NF

Inductive proximity switches (barrel round) DC type M-12x55 NFM are engineered from best quality components and as per international industrial standard. These are acclaimed for their ambient temperature 70°C and consistent performance. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-4-12-N1-55-NF
SIZE M-12x55
TYPE NPN
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-40 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE 4
VOLTAGE DROP AT FULL LOAD 2.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 500 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-12X55
MOUNTING Non Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 15X15X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-5-14-N1-55-NF

Inductive proximity switches (barrel round) DC type M-14X55 NFM are engineered using top quality components and following international industrial standard. Its ambient temperature is 70'c and it is attached with LED position indicator. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-5-14-N1-55-NF
SIZE M-14X55
TYPE NPN
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-40 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE 5 mm for standard object size
VOLTAGE DROP AT FULL LOAD 2.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 400 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-14X55
MOUNTING Non Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 15X15X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-6.0-16-P2-65-NF

Inductive proximity switches (barrel round) DC type M-16X65 NFM are manufactured from first grade components and under the firm direction of expert quality controllers. These are engineered with non flush type mounting and with LED position indicator. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-6.0-16-P2-65-NF
SIZE M-16X65
TYPE PNP
OUTPUT LOGIC NC
OPERATING VOLTAGE 5-40 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE 6.0 mm for standard object size
VOLTAGE DROP AT FULL LOAD 2.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 350 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-16X65
MOUNTING Non Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 18X18X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?

Inductive Proximity Switches Barrel Round DC Type

Model no: PE-IN-8.0-18-P1-50-NF

Inductive proximity switches (barrel round) DC type M-18X50 NFM NO are available in various technical specifications. These are extensively acclaimed for its application specific construction and 500 Hz switching frequency. Inductive proximity switches DC type are available in sizes from 4mm to 80mm diameter. These are mainly PNP and NPN type having Flush and Non Flush Mounting. These have NO / NC and NO+NC output logic.


Model No PE-IN-8.0-18-P1-50-NF
SIZE M-18X50
TYPE PNP
OUTPUT LOGIC NO
OPERATING VOLTAGE 5-40 VDC
MAX. LOAD CURRENT 300 mAmp.
SENSING DISTANCE 8.0 mm for standard object size
VOLTAGE DROP AT FULL LOAD 2.5 VDC
NO LOAD CURRENT >10 mAmp.
RESIDUAL CURRENT 0.001 mAmp
SWITCHING FREQUENCY 250 Hz.
POSITION INDICATION LED
CABLE 3 core PVC & PU Flexible
H.V. TEST 1.5 KV for 1 Sec.
AMBIENT TEMP. 70°C
ENCLOSURE Nickel Platted Brass Tube
PROBE SIZE M-18X50
MOUNTING Non Flush Type
PROTECTION GRADE IP-67
APPROVELS CE
STANDARD OBJECT SIZE 20X20X1 mm

Application: Inductive Proximity Switches are used to sense the position of metals (any type). Some possible applications are shown in the figures below.
Are You Interested For This Product?
